Kynar Insulated Lead MF52D Black Enameled Wire NTC Thermistor Temperature Sensor 50K 3950
Description Of The NTC Thermistor Temperature Sensor 50K 3950
Similar to our MF52B Series, AMPFORT’s MF52D series temperature sensing thermistors are available with a wide range of resistance values and tolerances ranging from ±1% to ±10% as well as point matched options. The MF52D thermistors are built with Kynar insulated lead wire and are capable of withstanding temperatures up to 135°C. Low cost and highly stable devices make this sensor an excellent choice for temperature measurement, control and compensation applications.
Applications Of The NTC Thermistor Temperature Sensor 50K 3950
• In terms of household electronic temperature measurement, detection and control: such as air conditioners, refrigerators, deep freezers, soymilk machines, bread machines, water dispensers, etc.
• Temperature detection and measurement of medical equipment and equipment.
• Temperature control instrument.
• Electronic thermometer and hygrometer.
• Car temperature measurement.
• Electronic watch calendar.
• Temperature measurement, compensation, control and protection of battery packs and battery chargers.
Characteristic Of The NTC Thermistor Temperature Sensor 50K 3950
* Kynar insulated lead wire
* Epoxy Encapsulated
* Special lead materials and lengths available
* Operating temperature up to 125°C

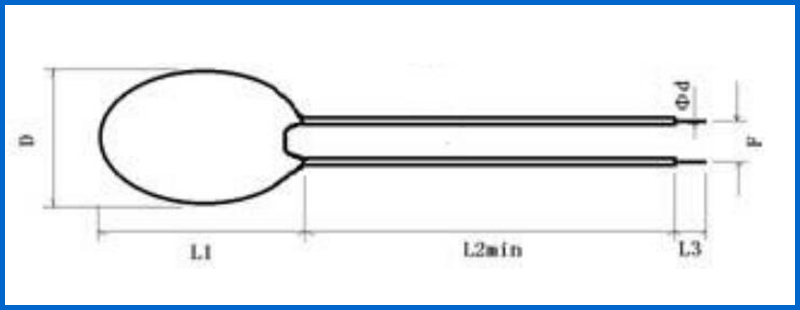

Dimensions Of The NTC Thermistor Temperature Sensor 50K 3950 (mm)
A:(Tin. nickle Cu or Cp wire)
Normal dimension table
| Code | Dmax | L1max | L2min | d ±0.05 | F ±0.5 |
| A1 | 2.5 | 4 | 25 | 0.3 | 1.7 |
| A2 | 3 | 4.5 | 25 | 0.45 | 2.2 |
B:(Enamelled cu wire)
Normal dimension table
| Code | Dmax | L1max | L2min | L3 ±1 | d±0.05 |
| B1 | 2 | 3.5 | by user determine | 3 | 0.2 |
| B2 | 3 | 4 | by user determine | 3 | 0.3 |
C:(High-temperature wire)
Normal dimension table
| Code | Dmax | L1max | L2min | L3 ±1 | Wire AWG |
| C1 | 3 | 7.5 | by user determine | 5 | 30# |
| C2 | 4 | 7.5 | by user determine | 5 | 28# |
D:(Normal temperature wire)
Normal dimension table
| Code | Dmax | L1max | L2min | L3 ±1 | Wire AWG |
| D1 | 3 | 7.5 | by user determine | 5 | 30# |
| D2 | 4 | 7.5 | by user determine | 5 | 28# |
E:Lead and head are all special specification)
Normal dimension table
| Code | Dmax | L1max | L2min | L3 ±1 | Wire AWG |
| E1 | by user determine | by user determine | by user determine | 5 | by user determine |
| E2 | by user determine | by user determine | by user determine | 5 | by user determine |
DE:(Cp Lead Coated with epoxy resin)
Normal dimension table
| Code | Dmax | L1max | L21max | L3 | d±0.05 | F±0.05 |
| DE1 | 3 | 6.0 | 55 | By user determine | 0.3 | / |
| DE2 | 4 | 7.5 | 35 | by user determine | 0.45 | / |
F:(Tinned steel wire)
Normal dimension table
| Code | Dmax | L1max | L2±1.5 | d±0.01 | f±0.05 | T max |
| F | 3.8 | 9.5 | 17 | 0.6 | 2.5 | 3.5 |
Series Data Of The NTC Thermistor Temperature Sensor 50K 3950
| Part No. | Rated Resistance R25(KΩ ) | B Value(25/50°KΩ) | Rated Power (mw) | Dissi. Coef. (mw/°C) | Thermal time Constant(S) | Operating Temp. (°C) |
| MF52□□□3100 | 0.1 ~20 | 3100 | ≤50 | ≥2.0 In Still Air | ≤12 In Still Air | -40~+125°C |
| MF52□□□ 3270 | 0.2 ~20 | 3270 |
| MF52□□□ 3380 | 0.5 ~50 | 3380 |
| MF52□□□ 3470 | 0.5 ~50 | 3470 |
| MF52□□□ 3600 | 1 ~100 | 3600 |
| MF52□□□ 3950 | 5 ~100 | 3950 |
| MF52□□□ 4000 | 5 ~100 | 4000 |
| MF52□□□ 4050 | 5 ~200 | 4050 |
| MF52□□□ 4150 | 10 ~250 | 4150 |
| MF52□□□ 4300 | 20 ~1000 | 4300 |
| MF52□□□ 4500 | 20 ~1000 | 4500 |
Normal Type Of The NTC Thermistor Temperature Sensor 50K 3950
| B value | -55 | -40 | -25 | -10 | 0 | 10 | 25 | 50 | 85 | 100 |
| 3933/3K | 225.2 | 87.618 | 37.45 | 16.4 | 9.74 | 5.955 | 3 | 1.08 | 0.322 | 0.206 |
| 4096/10K | 1022 | 375.36 | 143.47 | 59.22 | 34.28 | 20.5 | 10 | 3.47 | 0.993 | 0.624 |
| 3920/2.7K | 196.38 | 76.67 | 33.11 | 14.62 | 8.662 | 5.333 | 2.7 | 0.974 | 0.293 | 0.187 |
| 4200/20K | 2112 | 764.4 | 302.2 | 124.42 | 70.22 | 41.663 | 20 | 6.704 | 1.809 | 1.116 |
| 4200/23K | 2429 | 879.1 | 347.5 | 143.08 | 80.75 | 4.791 | 23 | 7.709 | 2.08 | 1.283 |
| 4620/150K | 25327 | 8093 | 2831 | 1080 | 582.94 | 332.4 | 150 | 45.2 | 10.681 | 6.208 |
| 4700/1M | | 57649 | 19855 | 7841 | 3965 | 2251 | 1000 | 296.95 | 68.317 | 39.079 |
| 4000/10K | 813.5 | 306.2 | 126.37 | 55.32 | 32.89 | 20.06 | 10 | 3.536 | 1.018 | 0.638 |
| 4050/10K | 851.5 | 319.5 | 130.98 | 56.39 | 33.29 | 20.164 | 10 | 3.503 | 0.997 | 0.62 |
| 3950/10K | 739.5 | 283.73 | 117.28 | 53.28 | 32.116 | 19.783 | 10 | 3.588 | 1.044 | 0.657 |
| 3941/10K | 713.1 | 276.17 | 116.62 | 53.29 | 32.00 | 19.77 | 10 | 3.597 | 1.052 | 0.663 |
| 4150/15K | 1578 | 566.3 | 219.2 | 90.38 | 51.53 | 30.85 | 15 | 5.128 | 1.418 | 0.877 |
| 4300/150K | 18308 | 6243 | 2319 | 935.5 | 527.3 | 314.03 | 150 | 49.05 | 12.316 | 7.25 |
| 4450/150K | 18157 | 6233 | 2344 | 955.4 | 544.3 | 320.19 | 150 | 47.634 | 11.775 | 6.947 |
| 4300/100K | 10845 | 3779 | 1440 | 596 | 342.5 | 206.52 | 100 | 32.868 | 8.484 | 5.067 |
| 4150/220K | 23673 | 8310 | 3176 | 1314 | 758.26 | 452.45 | 220 | 74.76 | 20.396 | 12.435 |
| 4250/220K | 25271 | 8716 | 3305 | 1362 | 774.3 | 458.39 | 220 | 73.025 | 19.23 | 11.582 |
| 3877/30K | 2053 | 781.01 | 325.1 | 147.1 | 90.421 | 57.304 | 30 | 10.999 | 3.234 | 2.029 |
| 3600/10K | 653.6 | 249.84 | 105.31 | 47.87 | 29.465 | 18.754 | 10 | 3.944 | 1.292 | 0.847 |
| 3700/10K | 737.3 | 275.23 | 112.16 | 49.97 | 30.358 | 19.091 | 10 | 3.829 | 1.211 | 0.785 |
| 3740/12K | 907.4 | 337.46 | 137.88 | 60.97 | 36.701 | 23.03 | 12 | 4.549 | 1.417 | 0.915 |
| 4050/50K | 4220 | 1544 | 619 | 268.6 | 159.45 | 98.845 | 50 | 17.501 | 4.815 | 2.953 |
| 4090/33K | 2818 | 1032 | 415.9 | 181.44 | 108.41 | 66.626 | 33 | 11.41 | 3.154 | 1.939 |
| 3380/10K | 500.13 | 203.75 | 89.35 | 43 | 27.513 | 18.016 | 10 | 4.168 | 1.461 | 0.983 |
| 3369/10K | 492 | 202.17 | 89.95 | 43.28 | 27.57 | 18.06 | 10 | 4.172 | 1.47 | 0.988 |
| 3470/10K | 536.6 | 214.86 | 94.78 | 44.69 | 28.11 | 18.305 | 10 | 4.064 | 1.374 | 0.911 |
| 3641/2.3K | 136.34 | 52.46 | 22.405 | 10.432 | 6.495 | 4.225 | 2.3 | 0.888 | 0.276 | 0.177 |
| 3600/2K | 121.38 | 46.58 | 19.8 | 9.169 | 5.726 | 3.682 | 2 | 0.785 | 0.244 | 0.158 |
| 3550/2.5K | 147.55 | 57.02 | 24.32 | 11.329 | 7.024 | 4.556 | 2.5 | 0.996 | 0.312 | 0.202 |
| 4027/31K | 2505 | 933.2 | 381.47 | 169.01 | 101.87 | 62.172 | 31 | 10.857 | 3.055 | 1.892 |
| 4450/470K | | 22563 | 8275 | 3115 | 1748 | 1013 | 470 | 148.66 | 36.69 | 21.62 |
| 3950/50K | 4090 | 1475 | 603.3 | 262.5 | 157.91 | 98.034 | 50 | 17.94 | 5.02 | 3.09 |
| 3870/10K | 673 | 257.42 | 108.35 | 49.928 | 30.822 | 19.423 | 10 | 3.665 | 1.088 | 0.687 |
| 3760/5K | 296.93 | 115.7 | 49.89 | 23.52 | 14.771 | 9.49 | 5 | 1.881 | 0.578 | 0.37 |
| 4250/50K | 5082 | 1800 | 700.1 | 295.5 | 172.21 | 103.6 | 50 | 16.625 | 4.397 | 2.656 |
| 4150/50K | 4656 | 1666 | 656.3 | 280.47 | 164.76 | 100.87 | 50 | 17.036 | 4.585 | 2.787 |
| 4150/10K | 1049 | 382.3 | 147.2 | 60.23 | 34.665 | 20.69 | 10 | 3.41 | 0.95 | 0.588 |
| 4100/10K | 908 | 337.01 | 138.55 | 58.341 | 34.265 | 20.536 | 10 | 3.442 | 0.958 | 0.594 |
| 4250/10K | 1291 | 433.5 | 158.1 | 62.89 | 35.55 | 20.936 | 10 | 3.337 | 0.917 | 0.566 |
| 4250/100K | 10289 | 3623 | 1392 | 579.4 | 337.6 | 204.5 | 100 | 33.365 | 8.701 | 5.226 |
| 3270/5K | 221.44 | 92.57 | 42.27 | 20.55 | 13.346 | 8.861 | 5 | 2.142 | 0.773 | 0.527 |
| 3270/2K | 75.5 | 32.11 | 14.75 | 7.47 | 4.962 | 3.385 | 2 | 0.852 | 0.296 | 0.198 |
| 3950/2K | 186.3 | 67.359 | 26.39 | 11.201232 | 6.601 | 4.005 | 2 | 0.7166 | 0.213 | 0.136 |
| 4045/2.9K | 343.5 | 115.6 | 42.01 | 17.178 | 9.845 | 5.917 | 2.9 | 1.015 | 0.297 | 0.189 |
| 3715/2K | 154.2 | 57.16 | 22.918 | 10.092 | 6.128 | 3.837 | 2 | 0.766 | 0.25 | 0.166 |
| 3895/2K | 178.69 | 65.03 | 25.618 | 10.957 | 6.483 | 3.966 | 2 | 0.728 | 0.222 | 0.144 |
| 3950/2K | 194.93 | 69.218 | 26.764 | 11.256 | 6.638 | 4.007 | 2 | 0.718 | 0.216 | 0.138 |
| 3628/1K | 59.23 | 24.995 | 10.781 | 4.922 | 2.985 | 1.888 | 1 | 0.389 | 0.128 | 0.084 |
| 4150/100K | 10611 | 3709 | 1410 | 582.8 | 336.77 | 203.67 | 100 | 33.905 | 8.896 | 5.318 |
| 4050/100K | 9862 | 3508 | 1356 | 566.5 | 333.42 | 202.14 | 100 | 34.821 | 9.761 | 6.008 |
| 3990/100K | 9227 | 3320 | 1295 | 553.3 | 326.35 | 199.63 | 100 | 35.56 | 10.196 | 6.349 |
| 4100/100K | 10523 | 3655 | 1394 | 579.3 | 337.61 | 203.22 | 100 | 34.35 | 9.543 | 5.86 |
| 3950/100K | 8989 | 3169 | 1287 | 551.1 | 326.56 | 198.92 | 100 | 35.75 | 10.362 | 6.474 |
| 4100/100K | 9701 | 3431 | 1335 | 565.8 | 332.71 | 201.76 | 100 | 34.33 | 9.238 | 5.595 |
| 4200/100K | 10376 | 3650 | 1396 | 584.1 | 339.123 | 203.84 | 100 | 33.626 | 8.767 | 5.266 |
| 3950/5K | 370.16 | 141.26 | 60.76 | 27.16 | 16.154 | 9.932 | 5 | 1.796 | 0.531 | 0.336 |
| 3900/20K | 1457 | 544.84 | 223.31 | 99.77 | 60.91 | 38.3 | 20 | 7.285 | 2.121 | 1.33 |
| 3908/30K | 2216 | 830.8 | 342.68 | 152.71 | 92.344 | 57.875 | 30 | 10.819 | 3.103 | 1.93 |
| 3470/5K | 291.02 | 112.2 | 47.685 | 22.32 | 14.066 | 9.128 | 5 | 2.035 | 0.647 | 0.419 |
| 3380/2.03K | 102.75 | 41.087 | 18.11 | 8.679 | 5.516 | 3.635 | 2.03 | 0.846 | 0.278 | 0.181 |
| 3810/10K | 649.4 | 248.5 | 104.33 | 48.28 | 29.77 | 18.94 | 10 | 3.72 | 1.118 | 0.708 |
| 3477/3.485K | | | 33.04 | 15.51 | 9.75 | 6.333 | 3.485 | 1.44 | 0.502 | 0.334 |
| 3380/10K | 554.9 | 216.98 | 93.41 | 43.99 | 27.79 | 18.133 | 10 | 4.163 | 1.453 | 0.958 |
| 3880/30K | 2045 | 912.14 | 366.36 | 160.45 | 95.85 | 59.145 | 30 | 10.954 | 3.148 | 1.943 |
| 4100/15K | 1339 | 487.7 | 203.53 | 87.56 | 51.205 | 30.688 | 15 | 5.153 | 1.433 | 0.888 |
| 3900/10K | | | 112.24 | 50.38 | 30.491 | 19.321 | 10 | 3.627 | 1.057 | 0.664 |
| 3470/2K | 86.404 | 35.582 | 16.269 | 8.067 | 5.246 | 3.524 | 2 | 0.814 | 0.274 | 0.183 |
| 3580/2K | 100.6 | 40.238 | 17.63 | 8.522 | 5.439 | 3.621 | 2 | 0.789 | 0.256 | 0.167 |
| 4300/33K | 4213 | 1433 | 529.5 | 211.33 | 119.25 | 69.85 | 33 | 10.788 | 2.854 | 1.733 |
| 4430/33K | 5287 | 1692 | 586.2 | 224.88 | 124.63 | 71.53 | 33 | 10.467 | 2.676 | 1.604 |
| 3935/10K | 983 | 341.43 | 131.32 | 55.73 | 32.79 | 19.966 | 10 | 3.614 | 1.087 | 0.692 |
| 3900/2.005K | 181.8 | 66.18 | 26.03 | 11.09 | 6.555 | 3.994 | 2.005 | 0.726 | 0.22 | 0.14 |
| 3935/2.252K | 201.3 | 73.61 | 29.16 | 12.442 | 7.325 | 4.481 | 2.252 | 0.811 | 0.243 | 0.155 |
| 3850/2.2K | 179.43 | 67.455 | 26.832 | 11.67 | 6.945 | 4.305 | 2.2 | 0.812 | 0.255 | 0.166 |
| 3930/50Kpaint | 3665 | 1376.7 | 571 | 253.7 | 155.74 | 97.09 | 50 | 18.035 | 5.226 | 3.258 |
| 3930/20K | 1471 | 554.1 | 229.65 | 102.85 | 62.59 | 39.19 | 20 | 7.172 | 2.061 | 1.281 |
| 3950/50K | 3926 | 1460 | 593.20 | 262.50 | 158.03 | 97.93 | 50 | 17.920 | 5.064 | 3.133 |
| 3950/20K | 1460 | 551.6 | 233.03 | 105.87 | 64.17 | 39.62 | 20 | 7.164 | 2.090 | 1.306 |
| 3950/10K | 798.2 | 312.42 | 126.86 | 54.92 | 32.63 | 19.94 | 10 | 3.588 | 1.062 | 0.670 |
| 3600/10K | 642.7 | 245.5 | 103.37 | 47.614 | 29.427 | 18.79 | 10 | 3.95 | 1.232 | 0.785 |
| 3380/2K | 78.4 | 32.97 | 15.37 | 7.775 | 5.123 | 3.471 | 2 | 0.835 | 0.284 | 0.189 |
| 3500/2.041K | 115.01 | 45.51 | 19.85 | 9.3 | 5.82 | 3.749 | 2.041 | 0.821 | 0.275 | 0.185 |
| 3950/10K | 841.8 | 304.88 | 121.95 | 53.38 | 32.04 | 19.788 | 10 | 3.578 | 1.045 | 0.656 |
| 4520/1M | | 49745 | 17808 | 6885 | 3815 | 2186 | 1000 | 308.76 | 75.675 | 44.078 |
| 4520/1M | | 49560 | 17727 | 6871 | 3807 | 2182 | 1000 | 308.87 | 75.59 | 44.123 |
| 4540/1M | | 50344 | 17943 | 6924 | 3827 | 2189 | 1000 | 307.47 | 74.89 | 43.68 |
| 3110/2.186K | 86.39 | 36.528 | 17.044 | 8.523 | 5.599 | 3.776 | 2.186 | 0.975 | 0.362 | 0.2438 |
| 3930/50K | 4424 | 1589 | 626.5 | 271.54 | 161.48 | 98.95 | 50 | 18.036 | 5.366 | 3.394 |
| 3960/50K | 4494 | 1626 | 638.8 | 275.02 | 162.74 | 99.44 | 50 | 17.89 | 5.247 | 3.27 |
| 3380/5K | 252.25 | 102.5 | 45.39 | 21.73 | 13.81 | 9.032 | 5 | 2.077 | 0.73 | 0.491 |
| 3580/5K | 273.02 | 113.65 | 49.7 | 23.24 | 14.53 | 9.298 | 5 | 1.973 | 0.649 | 0.43 |
| 3220/5K | 210.85 | 88.21 | 40.88 | 20.26 | 13.17 | 8.779 | 5 | 2.163 | 0.796 | 0.545 |
| 3340/2.186K | 78.494 | 34.008 | 16.209 | 8.37 | 5.582 | 3.826 | 2.186 | 0.92 | 0.317 | 0.2117 |
| 3950/2K | 171.98 | 66.767 | 26.664 | 11.326 | 6.606 | 4.009 | 2 | 0.719 | 0.218 | 0.14 |
| 3950/2K | 171.43 | 66.8 | 26.67 | 11.275 | 6.606 | 4.008 | 2 | 0.718 | 0.218 | 0.14 |
| 3930/2K | 171.05 | 65.258 | 26.254 | 11.182 | 6.567 | 3.994 | 2 | 0.722 | 0.22 | 0.1416 |
| 3480/0.5K | 29.386 | 11.533 | 4.948 | 2.301 | 1.438 | 0.926 | 0.5 | 0.2022 | 0.0697 | 0.0468 |
| 3980/2K | 197.26 | 69.853 | 26.946 | 11.371 | 6.645 | 4.019 | 2 | 0.714 | 0.213 | 0.1357 |
| 4300/3K | 487.3 | 151.3 | 52.43 | 20.05 | 11.151 | 6.445 | 3 | 0.983 | 0.269 | 0.167 |
| 4300/3K | 482.9 | 149.9 | 52.11 | 19.98 | 11.15 | 6.433 | 3 | 0.987 | 0.271 | 0.168 |
| 3860/1.5K | 123.11 | 48.404 | 19.457 | 8.322 | 4.902 | 2.986 | 1.5 | 0.552 | 0.1702 | 0.1103 |
| 3840/1.5K | 117.42 | 46.376 | 18.987 | 8.204 | 4.849 | 2.965 | 1.5 | 0.553 | 0.1723 | 0.1119 |
| 3350/4.991K | 241.05 | 98.56 | 44.06 | 21.27 | 13.655 | 8.956 | 4.991 | 2.093 | 0.742 | 0.494 |
| 3350/2.186K | 105.16 | 43.12 | 19.28 | 9.322 | 5.967 | 3.921 | 2.186 | 0.915 | 0.324 | 0.2153 |
| 3800K/30K | 2338 | 882.4 | 349.48 | 155.43 | 93.739 | 58.305 | 30 | 11.204 | 3.36 | 2.099 |
| 3200/5K | 185.3 | 81.93 | 38.98 | 19.77 | 12.971 | 8.733 | 5 | 2.182 | 0.802 | 0.555 |
| 3530/2.056K | 115.4 | 46.31 | 20.17 | 9.435 | 5.922 | 3.809 | 2.056 | 0.823 | 0.276 | 0.182 |
| 3950/50Kpaint | 3598 | 1404 | 570.2 | 257.81 | 157.57 | 98.54 | 50 | 17.95 | 5.195 | 3.243 |
| 3950/10K | 737.6 | 280.03 | 115.52 | 52.09 | 31.91 | 19.83 | 10 | 3.588 | 1.059 | 0.673 |
NTC thermistor and beauty equipment
The so-called beauty equipment is a machine that uses physical, electronic technology, optical technology and other methods to give people beauty.
Nowadays, large and small beauty equipments are used by boys and girls. It has a wide range of treatments, including acne, red blood streaks, vascular disease, etc. It can also achieve shaping, whitening, skin rejuvenation, hair removal, freckle removal and acne removal. effect.
The widely used NTC thermistors are also used in beauty equipment. There are two suitable NTC thermistors-enameled wire thermistors and small leather wire thermistors. The main types of shells are straight tube type, bullet type, Ground ring type and epoxy encapsulated head.
