PA66 Strip Power Distribution Fused Terminal Block FT06-1W+FT06-3W With CQC CE VDE
Description Of The Fused Terminal Block
Fused panel mount terminal block features an integrated in-line fuse holder. The white housing is made from nylon with tinned brass inserts for a screwed termination. A pull-up latch enables an easy replacement of a fuse.Terminal connectors have a wide range of applications and are a common component in electrical installations of all kinds, both domestic and industrial. The simplicity of their screw-down termination means they are particularly well suited to semi-permanent installations.
Features and Benefits Of The Fused Terminal Block
Inline fuse holder with pull-up latch
Tinned Brass inserts
Screw Mounting type
Screw Down termination
Typical Applications Of The Fused Terminal Block
Standard terminal blocks can be used in various applications including:
Sound equipment
Electrical installations
Surge protectors
Public address systems for speakers and other inputs and outputs
Electrical wiring to connect switches
Major appliances
FAQs Of The Fused Terminal Block
What is a fused terminal block?
A fused terminal block is simply a terminal block, with a fuse. Fused terminal blocks typically do the same job as a conventional terminal block would do, however, just with the added protection of a fuse inside it. The fuse helps prevent overvoltage’s by breaking the circuit.
How does a fused terminal block work?
A fused terminal block is very similar in how normal terminal blocks work. Terminal blocks are designed to connect wires together effectively or connect multiple levels of wires together. Fused terminal blocks just include a fuse in the connection between the two wires. Having a fuse in the terminal block prevents unnecessary and messy wiring and can help achieve certifications.

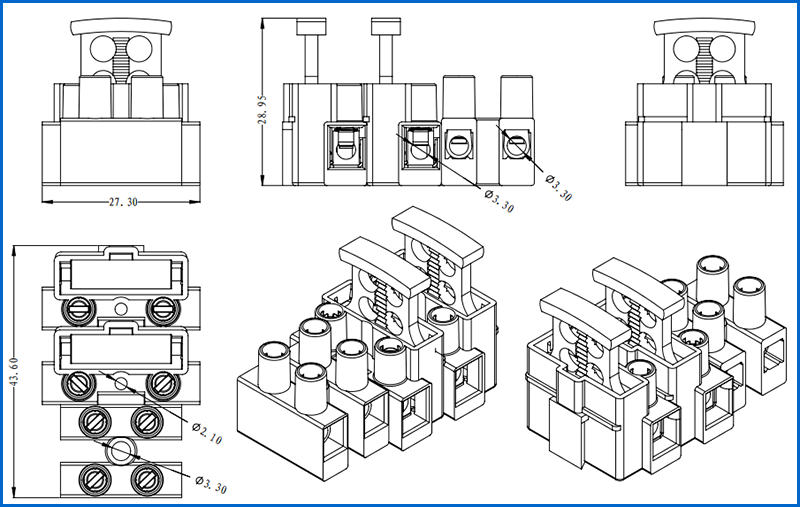

Material and dimension Of The Fused Terminal Block
| Insulation Material-Desination | Polyamide 66 (V2) |
| Flammability Class | UL94-V2 |
| Clamping Unit | Brass,stainless steel(wire protector) |
| Fuse | 5x20mm |
| Package quantity | 400pcs/carton |
Electrical Parameters Of The Fused Terminal Block
| P/N | FT06-1W+FT06-3W |
| Fuseholder | 6.3A 250V |
| Terminal | 32A 450V |
| Ambient temperature | Polyamide66(V2) T55 |
| Standard | IEC/EN |
Connection Of The Fused Terminal Block
| Cross section-Solid conductor | Fuse holder 2.5-4.0mm2 Terminal 0.5-4.0mm2 |
| Cross section-Stranded conductor | Fuse holder 2.5-4.0mm2 Terminal 0.75-4.0mm2 |
| Cross section-Fexible conductor | Fuse holder 2.5-4.0mm2 Terminal 0.75-4.0mm2 |
| Strip length | 7mm |
| Connection | Screw Fixed |
| Screw | M3 |
| Rewirable | Yes |
| Number of terminal | Multiway |
| Number of connection point | 4 |
Production Line Of The Fused Terminal Block

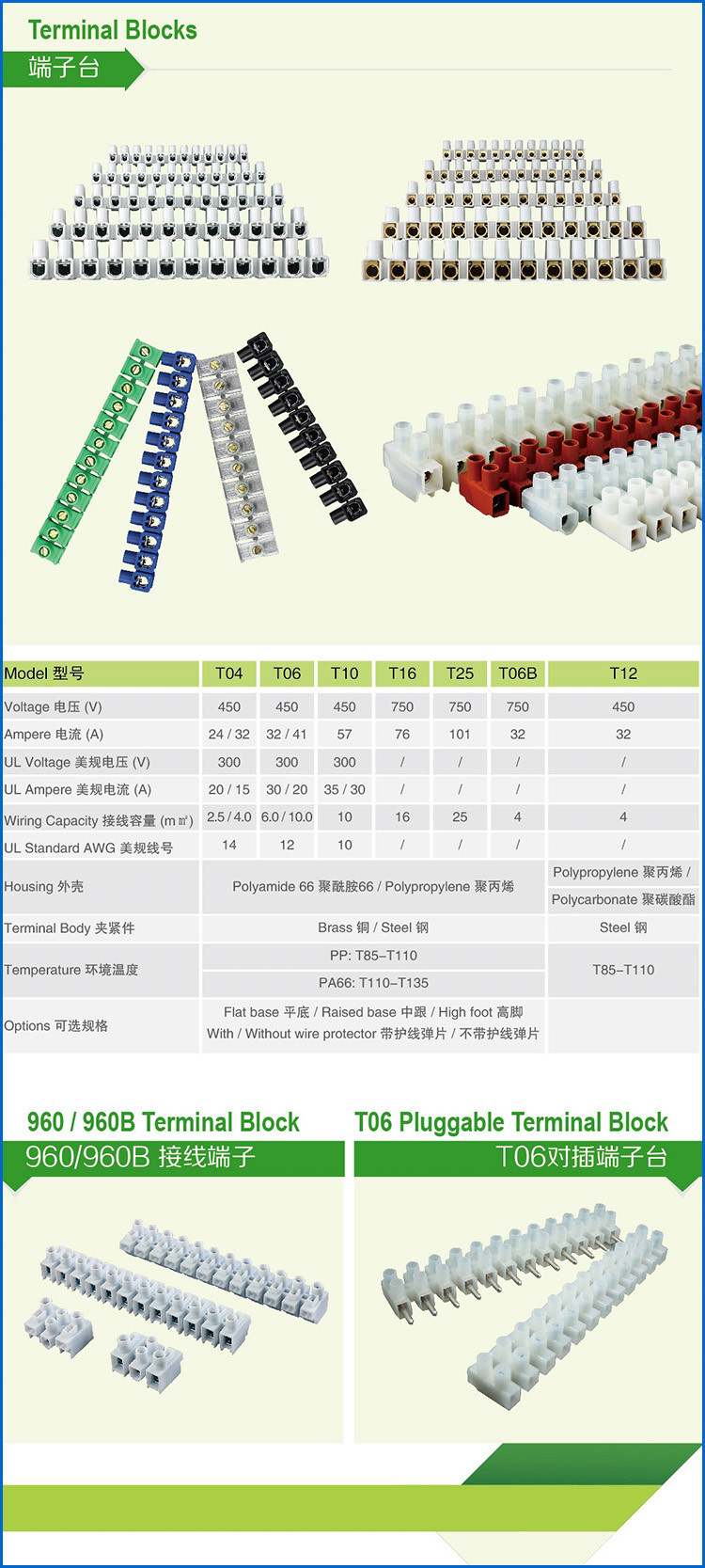

- Terminal Blocks

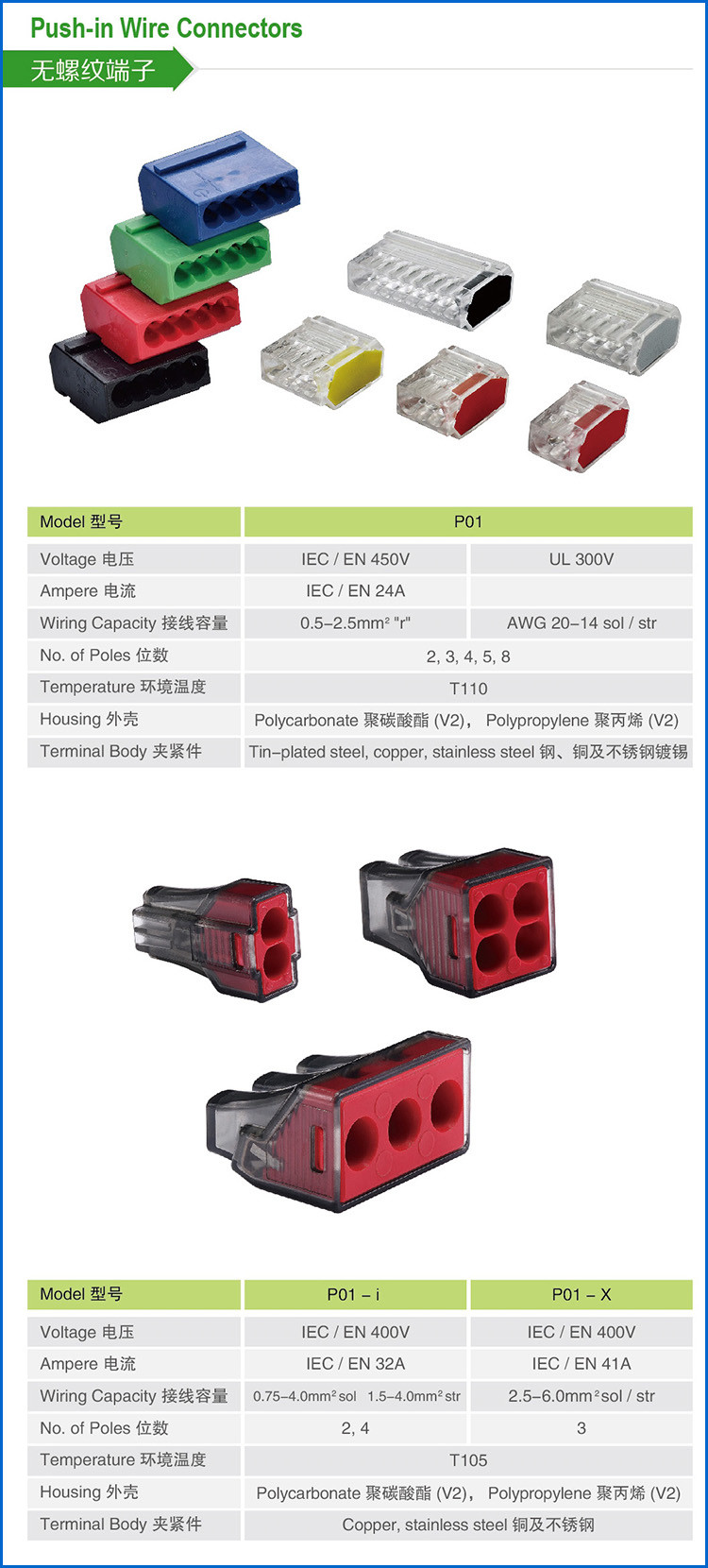

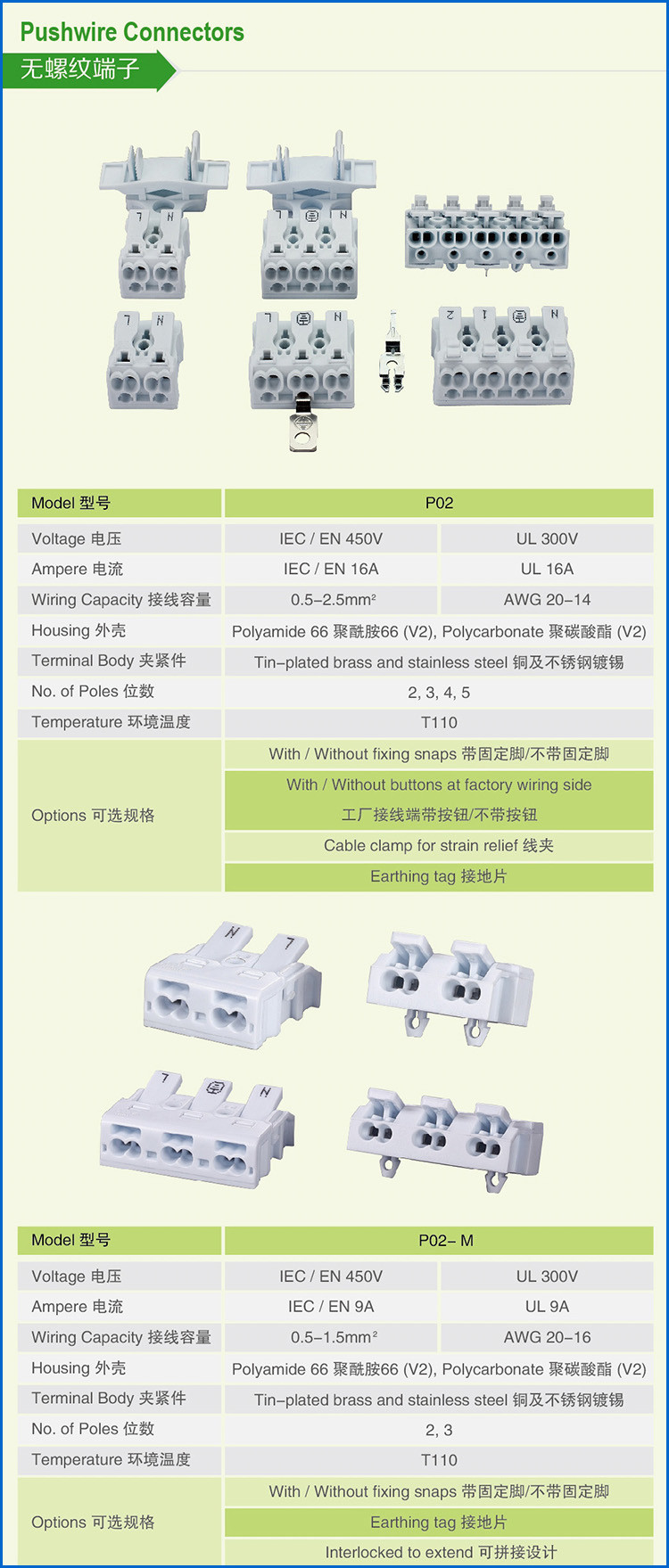

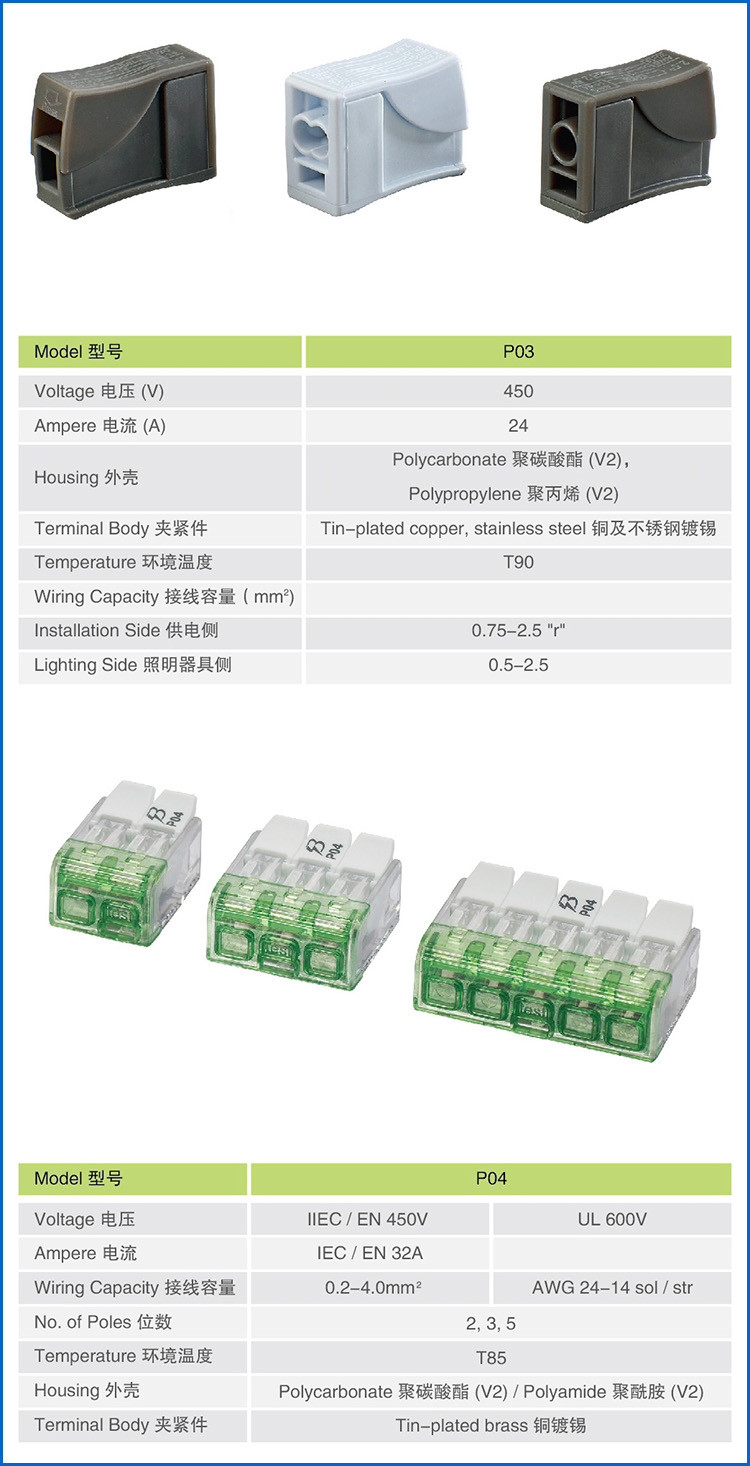

- Push Wire Connectors

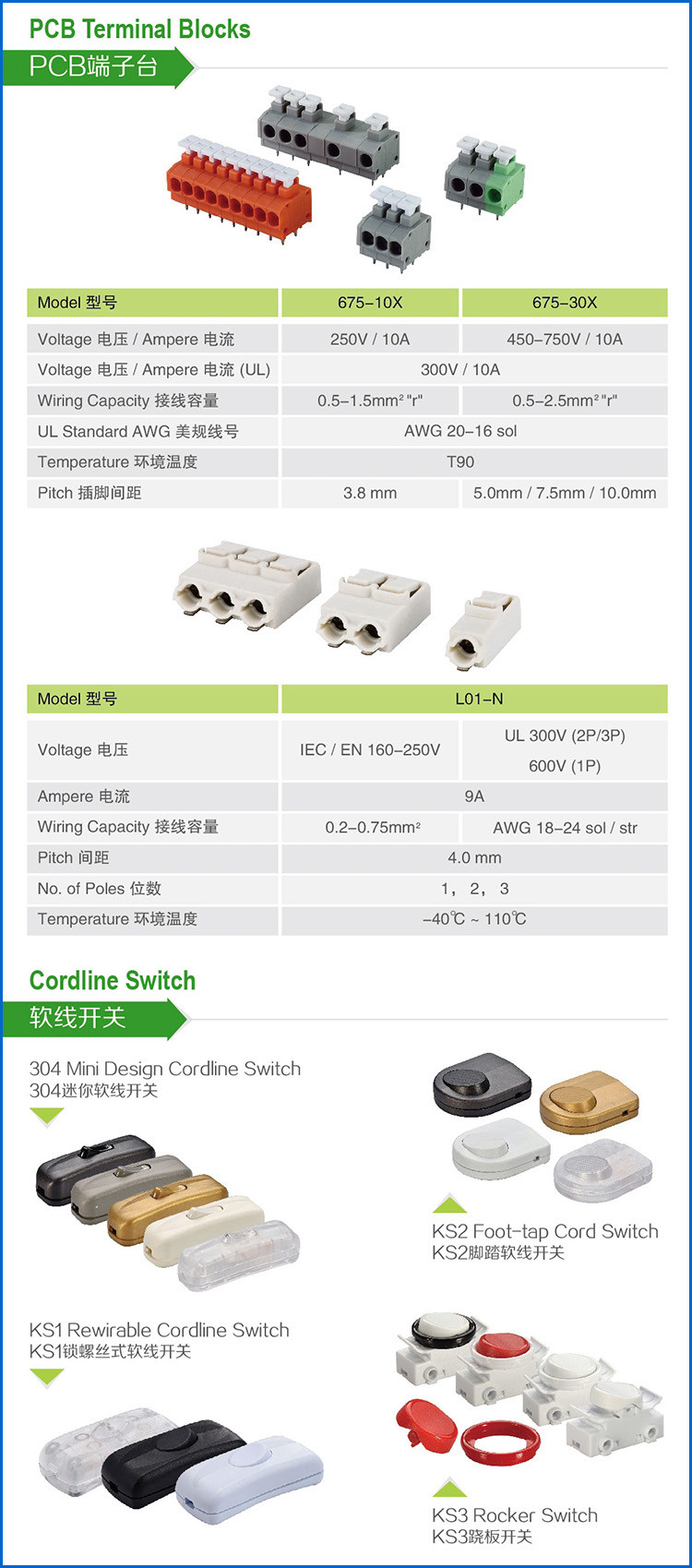

- PCB Push Wire Connectors
- Pluggable Connectors

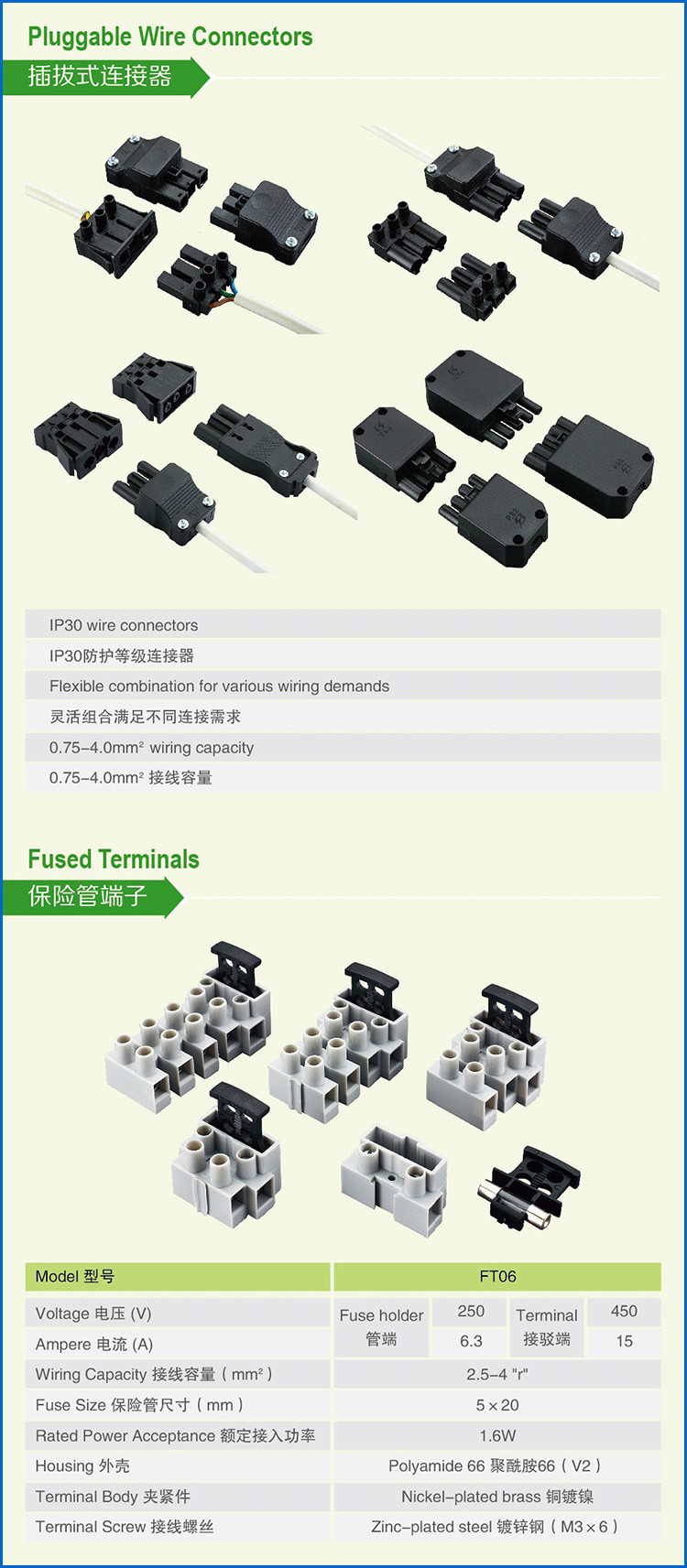

- Fused Terminals & Connectors
- Cordline Switch

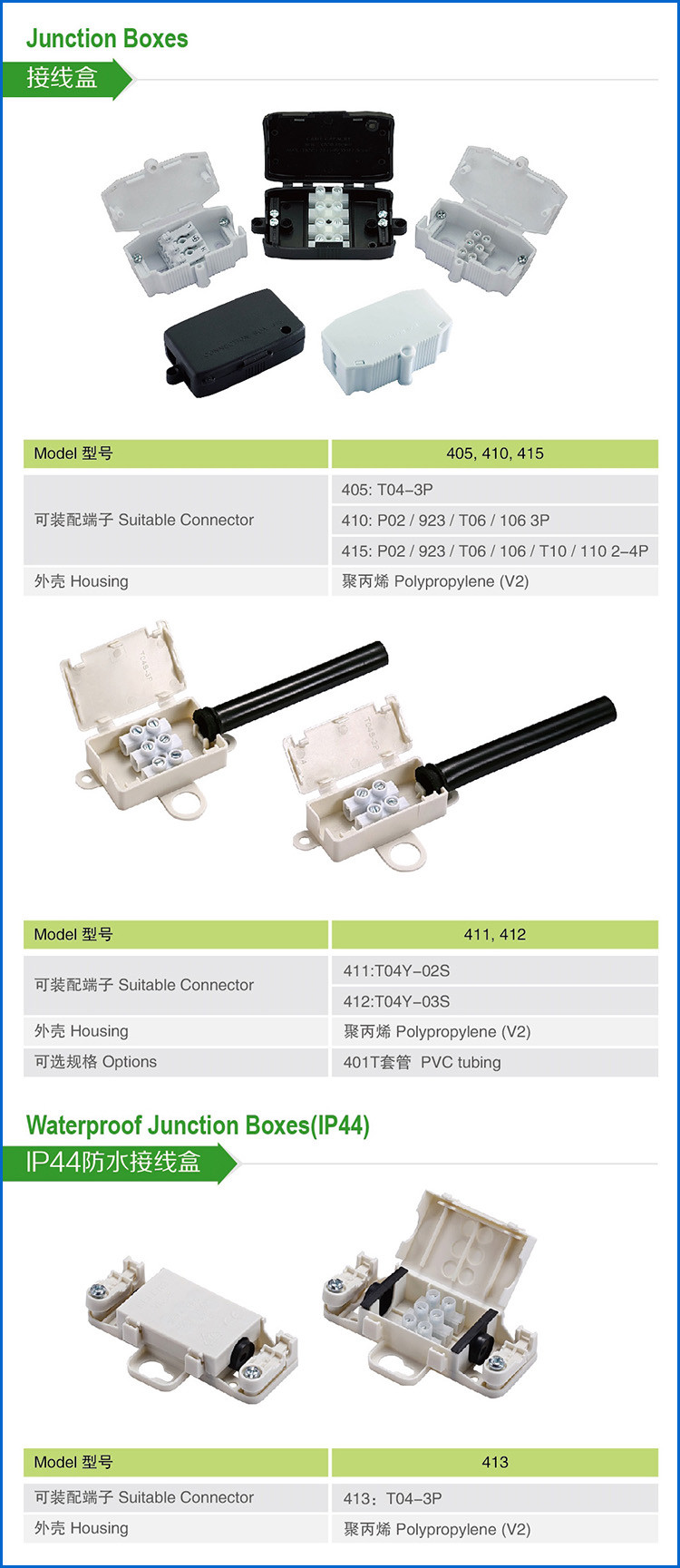

- Junction Boxes
